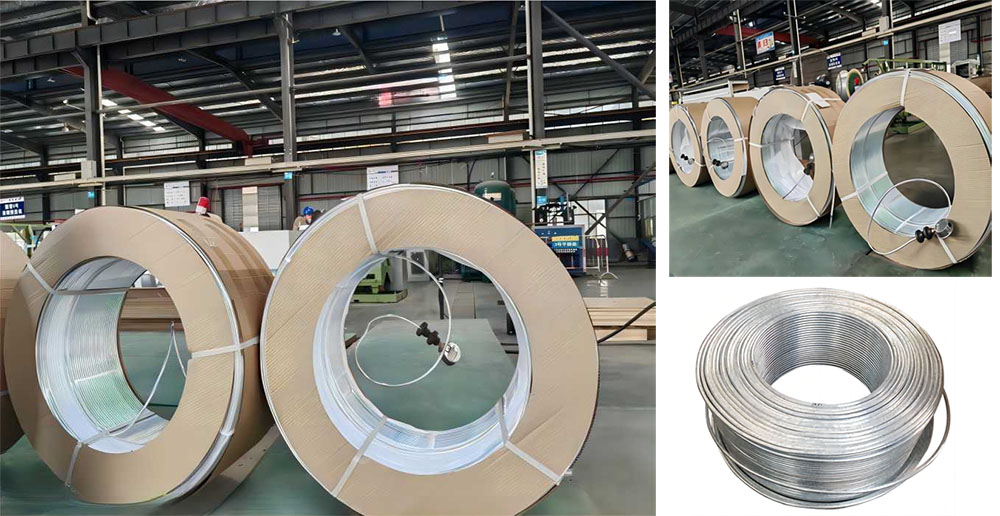

Aluminium extruded Round tubing In Coil
Aluminium Extruded Coil Tubing For Refrigerator, Air Condition Heat Exchanger
Our Group is earliest manufacturer in china for Aluminium extruded coil tubing, extruded tube cover about 60% in china domestick market thanks to it’s superior quality and good service.after years of development and reserch, we have already equipped with 25 advance production lines, and reach about 2800mts monthly capacilities.
Not only sells well in china, but also about 20% of tubes are exported to india,nezland, holland, russia, south america and kore, japan, thailand etc.
Main specification
Products name :Aluminium extrusion round coil tubing
Main Alloy/Temper: AA1050/1060/1070, H112
Wall thickness:0.5mm-3.0mm
Outer Dia: 4 -25mm
Total production lines: 23
Monthly capacity: 3200mts
Detail specification (Unit:mm)
Tube categery |
Round coil tubing |
Inter-grooved coil tubing |
Alloy |
1050.1060.1100 |
1070 |
temper |
H112 |
H112 |
Outer diameter |
4 -25mm |
6 -8mm |
Wall thickness |
0.5 -3.0mm |
0.65 -1.01mm |
Tube Coil weight (kgs) |
Max.75kgs |
Max.75kgs |

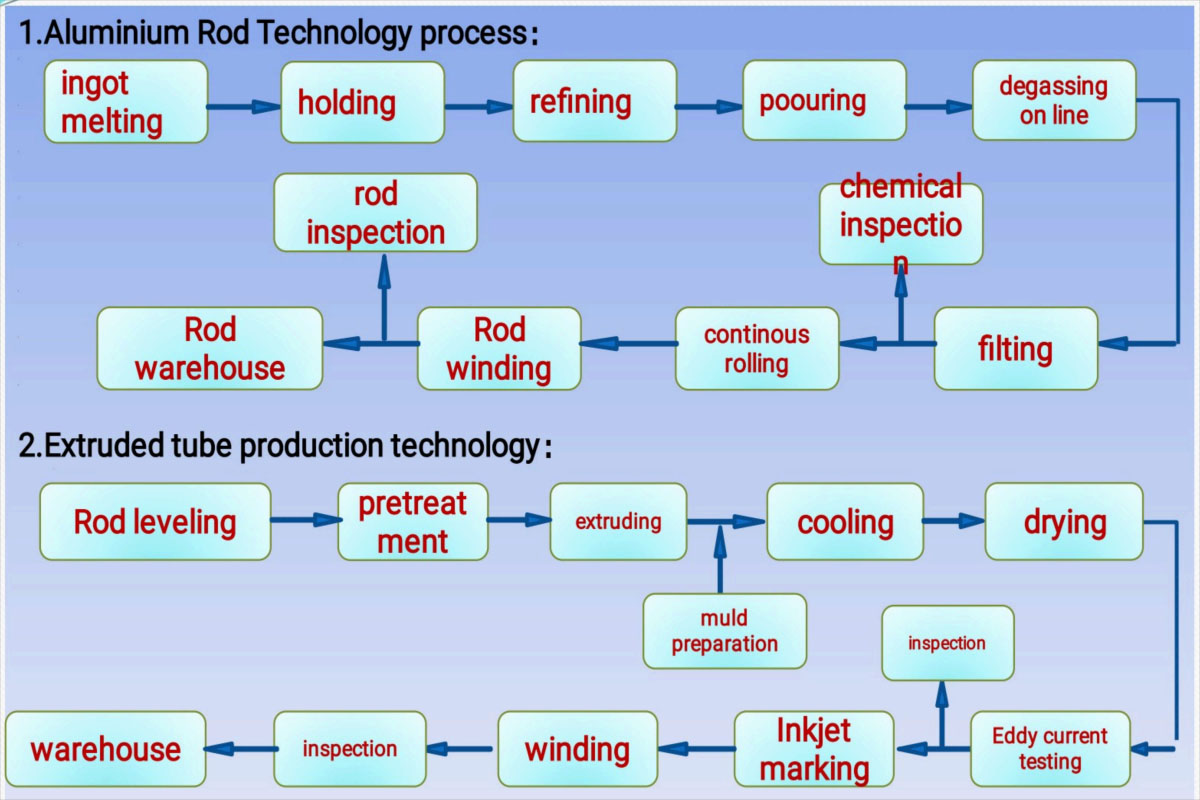

Technical Process
Technical parameters And wall thickness tolerance
Item |
Aluminium round tube |
Aluminium inter-grooved tube |
||
Alloy |
AA1070/1060 |
AA1050 |
AA1100 |
AA3003 |
Temper |
H112 |
H112 |
H112 |
H112 |
Tensile strength |
≥60 |
≥65 |
≥75 |
>80 |
Elogation |
≥25 |
≥25 |
≥25 |
≥25 |
Wall thickness |
≤0.8mm +/-0.05mm 0.8-1.2mm:+/-0.08mm 1.2-2.0mm +/-0.10mm |
0.8-1.0mm +/-0.10mm |
||
Aluminium extruded coil tubing Chemical composition
A1050 Aluminium Chemical Composition |
|||||||||
Al |
Si |
Cu |
Mg |
Zn |
Mn |
Ti |
V |
Fe |
Others |
99.5~100 |
0~0.25 |
0~0.05 |
0~0.05 |
0~0.05 |
0~0.05 |
0~0.03 |
0~0.05 |
0~0.40 |
0~0.03 |
A1060 Aluminium Chemical Composition |
|||||||||
Al |
Si |
Cu |
Mg |
Zn |
Mn |
Ti |
V |
Fe |
Others |
99.6-100 |
0~0.25 |
0~0.05 |
0~0.03 |
0~0.05 |
0~0.03 |
0~0.03 |
/ |
0~0.35 |
|
A1070 Aluminium Chemical Composition |
|||||||||
Al |
Si |
Cu |
Mg |
Zn |
Mn |
Ti |
V |
Fe |
Others |
99.7~100 |
0~0.2 |
0~0.04 |
0~0.03 |
0~0.04 |
0~0.03 |
0~0.03 |
0~0.05 |
0~0.25 |
|

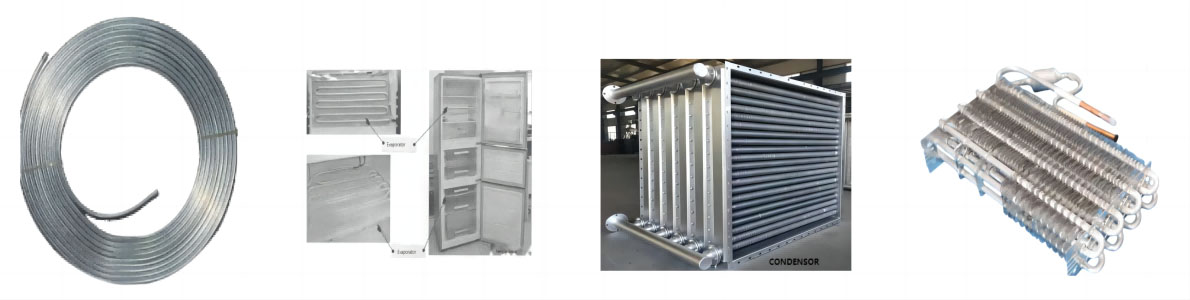

Application Of Aluminium round tube in coil
Air conditioner
Refregerator
Assemble type air conditioning unit
centrual control air conditioner
Show case Refregerators

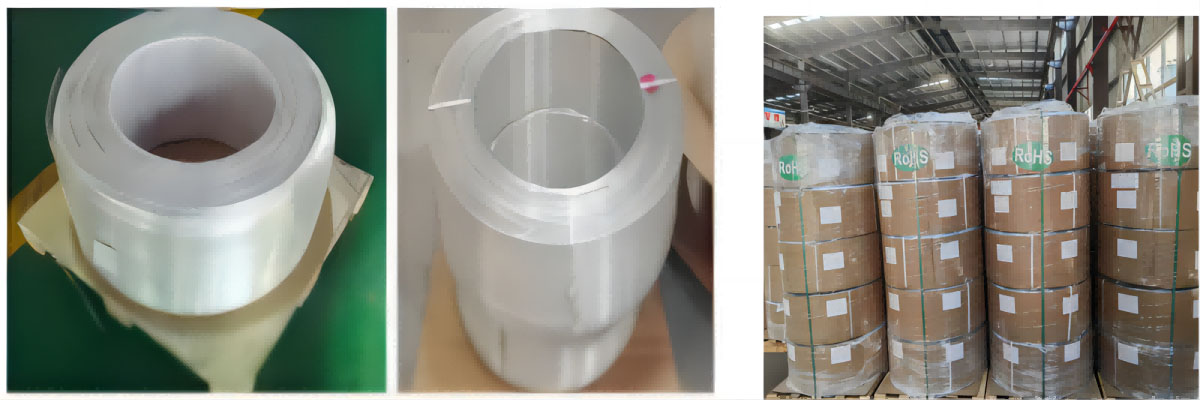

Packages of Aluminium round tube in coil
Plastic film on aluminum profile surface Plastic/Paper outside wrapped aluminium profile bundle .Pack by nylon, plastic bag, wrapping paper, film ,Compound paper then wooden box.
